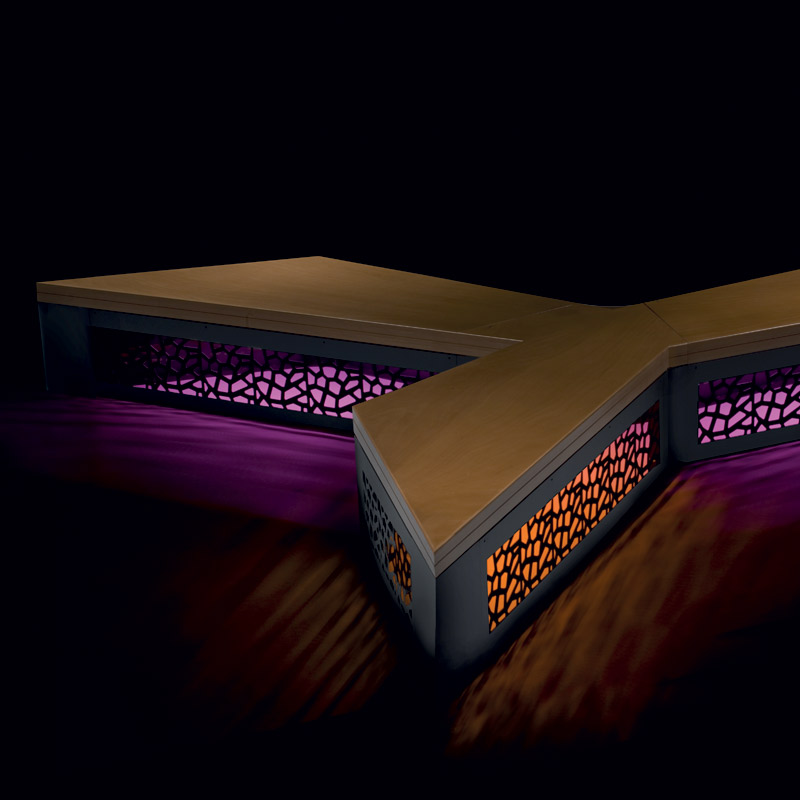

The frame of the bench YPSILON is made in steel (30/10 thickness). All metal parts, characterized by a coral-like texture, are fixed together through a plate of 3 mm thickness and M8 screws. The upper part of the bench is made in exotic wood and is fixed to the frame through M5 countersunk screws, which are fastened to L shaped plates attached to the wood with specific bolts. The bench can be fixed to the ground through specific bolts (not provided) to be inserted on holes (10 mm diam.).
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.
Length: 4775 mm
Width: 3395 mm
Height seat: 430 mm
Weight of steel: 173 kg
Materials: steel, wood
