DISPLAY BOARD: WAYFINDING TOTEM

Description

Designer: URBAN Design

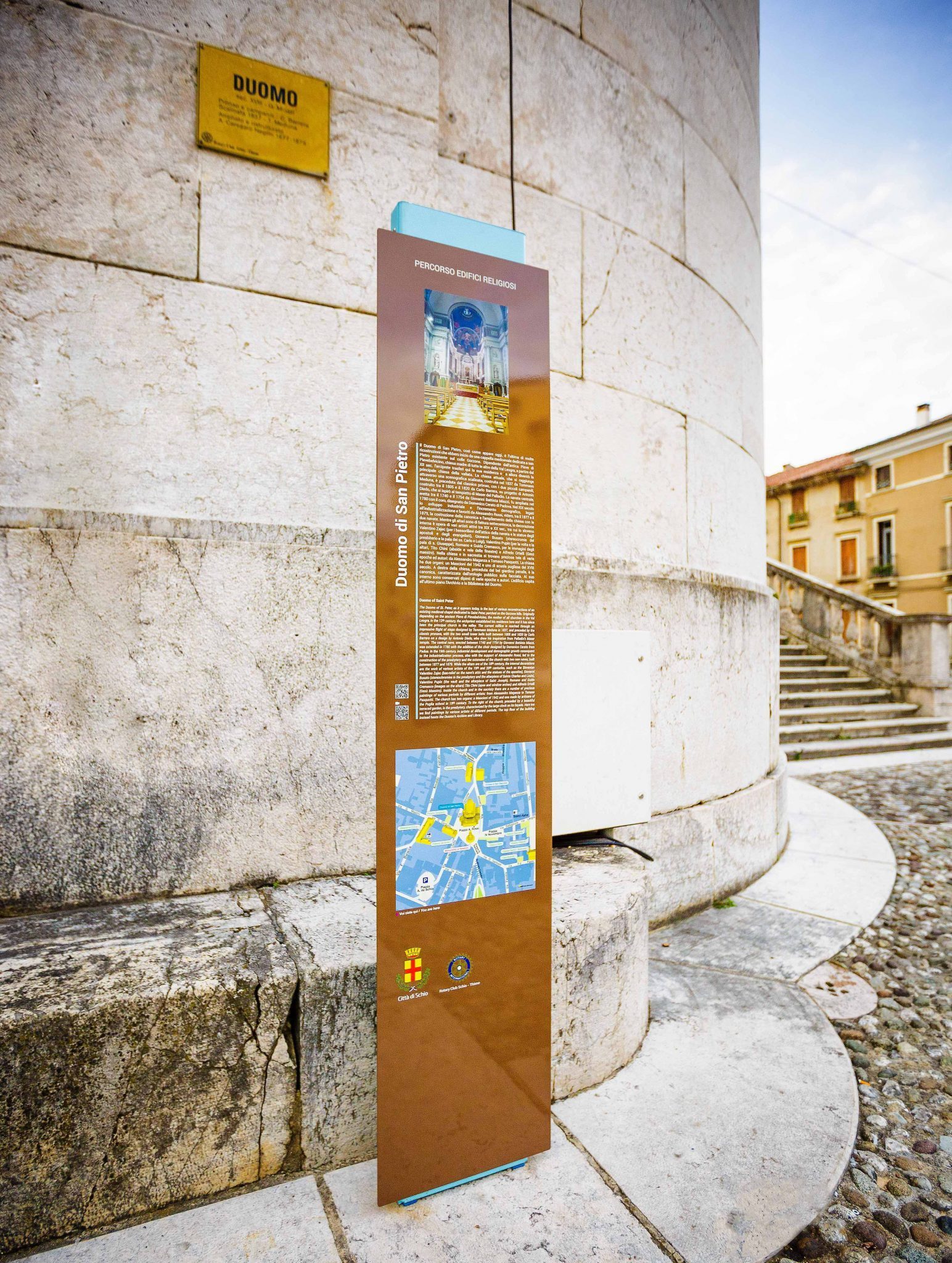

Wayfinding is a totem created to offer different kinds of information, especially historic and turist contents. The informations (maps, historic references, pictures etc.) are printed directly on the front panel in steel and are therefore permanent (graphic design and printing are additional services to be evaluated in the estimate stage). The structure is entirely made in steel. The load-bearing structure is 50/10 thick with the base of 80/10 thickness, provided with 3 holes 12 mm diam. For the fixing to the ground through specific bolts (not provided). The information panel has a 30/10 thickness. An optional carter, made in steel sheet (15/10 thick), can be placed behind the totem, on demand.

For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations  EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.



Max Dimensions:

Height: 2040 mm
Length: 400 mm
Width: 83 mm
Optional: Carter

Weight: 52 kg
Optional: Back carter
Weight with back carter: 62 kg

Material: steel
