LITTER BIN: CLOVER CYLINDRICAL

Categories: , Tags: ,

Description

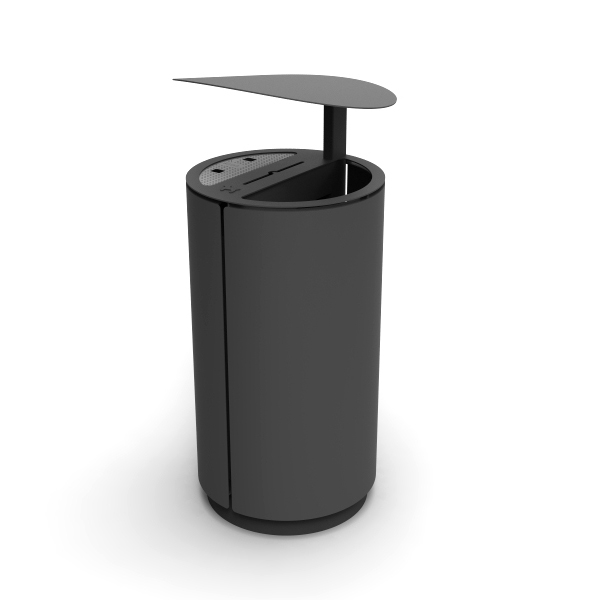

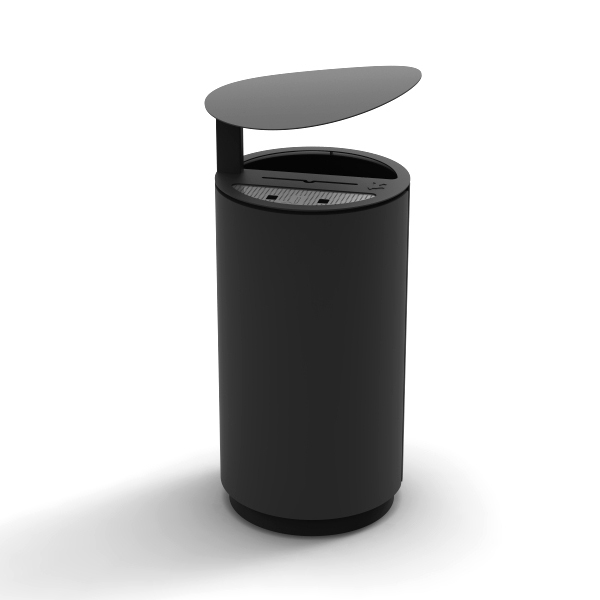

The Clover Cylindrical litter bin is made of steel EN10111DD11, with thicknesses ranging from 20 to 30/10. The internal container, removable thanks to the door in the body of the litter bin, is made of galvanized steel and has two oval holes that act as handles. The upper part of the basket has a “crescent” feeding hole flanked by a slot for the extraction of bags for dog dejections. It is also present the throws cigarettes, composed of a laser-pierced sheet 10/10, useful for extinguishing the stub and the conferment of the same. Both the box containing the butts and the one containing the roll of bags for dog dejections are placed inside the basket by means of guides that allow them to be removed once the door has been opened.
On the bottom of the bin there are 4 holes 12mm diameter for fixing to the ground through appropriate plugs (not supplied). On request we will supply M10 threaded bar pieces to be used with chemical dowel (not supplied). The rain cover is made of laser-cut and calendered 30/10 thick sheet metal.

For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations  EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.

Max dimensions:

Height: 1103 mm
Diameter: 460 mm
Cover diameter: 500 mm
Capacity: 100 lt

Material: steel
