LITTER BINS: TOWER

Designer: Hangar Design Group

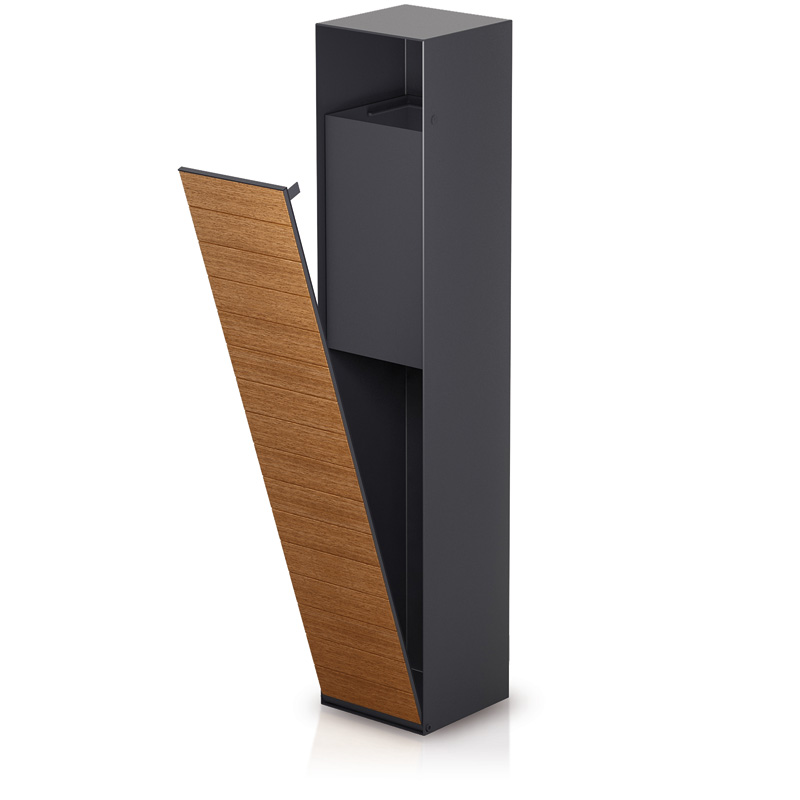

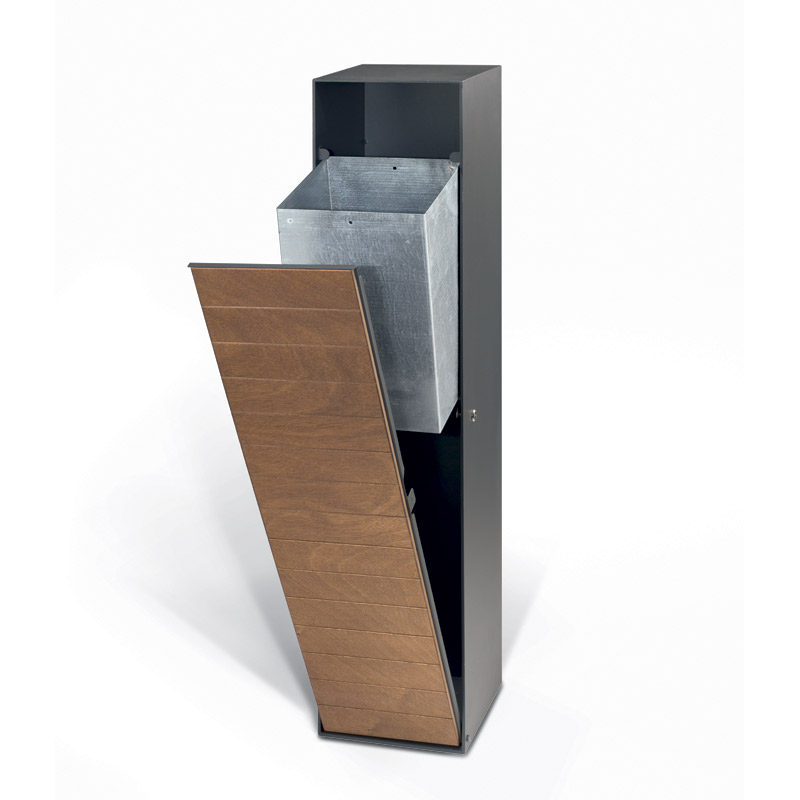

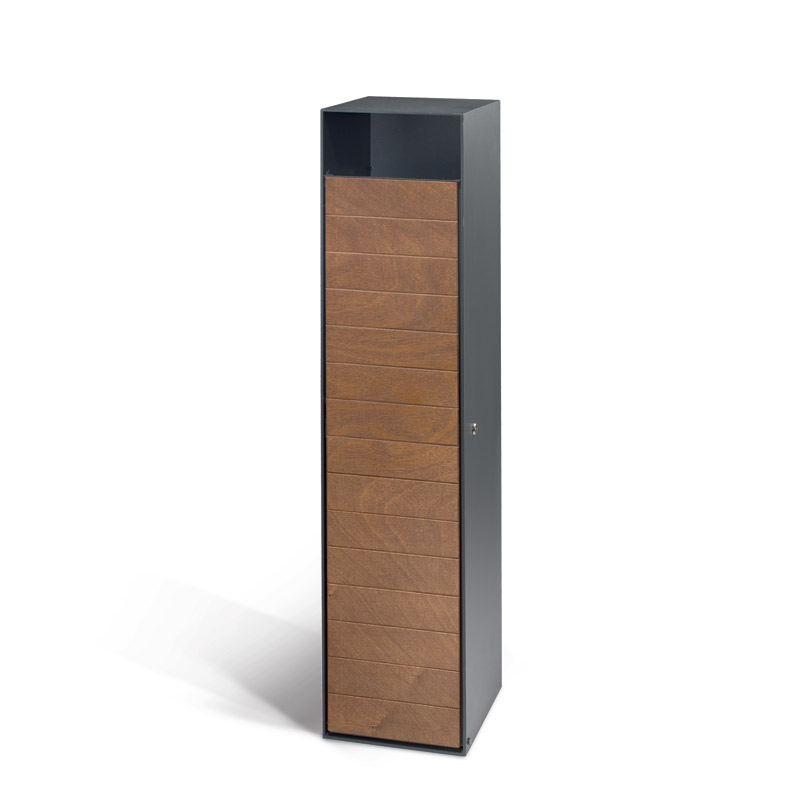

The strong structure of the TOWER bin is made in steel of 50/10 thickness. The door of the bin is made in steel sheet of 15/10 thickness and is covered with a multi-layered exotic wood panel of 10 mm thickness, which is milled to enhance the look of the slats. The panel is fixed to the door through specific bolts. The door is fixed to the structure of the bin through 2 screws M6 serving as a hinge and for the closing there is a triangular key lock. Inside the bin, there is a waste container, made in galvanized steel of 50/10 thickness and dimensions 30x230xH 400 mm. This one is placed on a plate of 50/10 thickness, welded to the bin. On the bottom there are 2 holes of 10 mm diam. for the fixing to the ground through specific bolts (not provided).

For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations  EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.

The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.

The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.



Max dimensions:

Length: 250 mm
Height: 1200 mm
Width: 250 mm
Capacity:  20 Lt
Weight: 50 kg

Materials: steel, wood
