Description

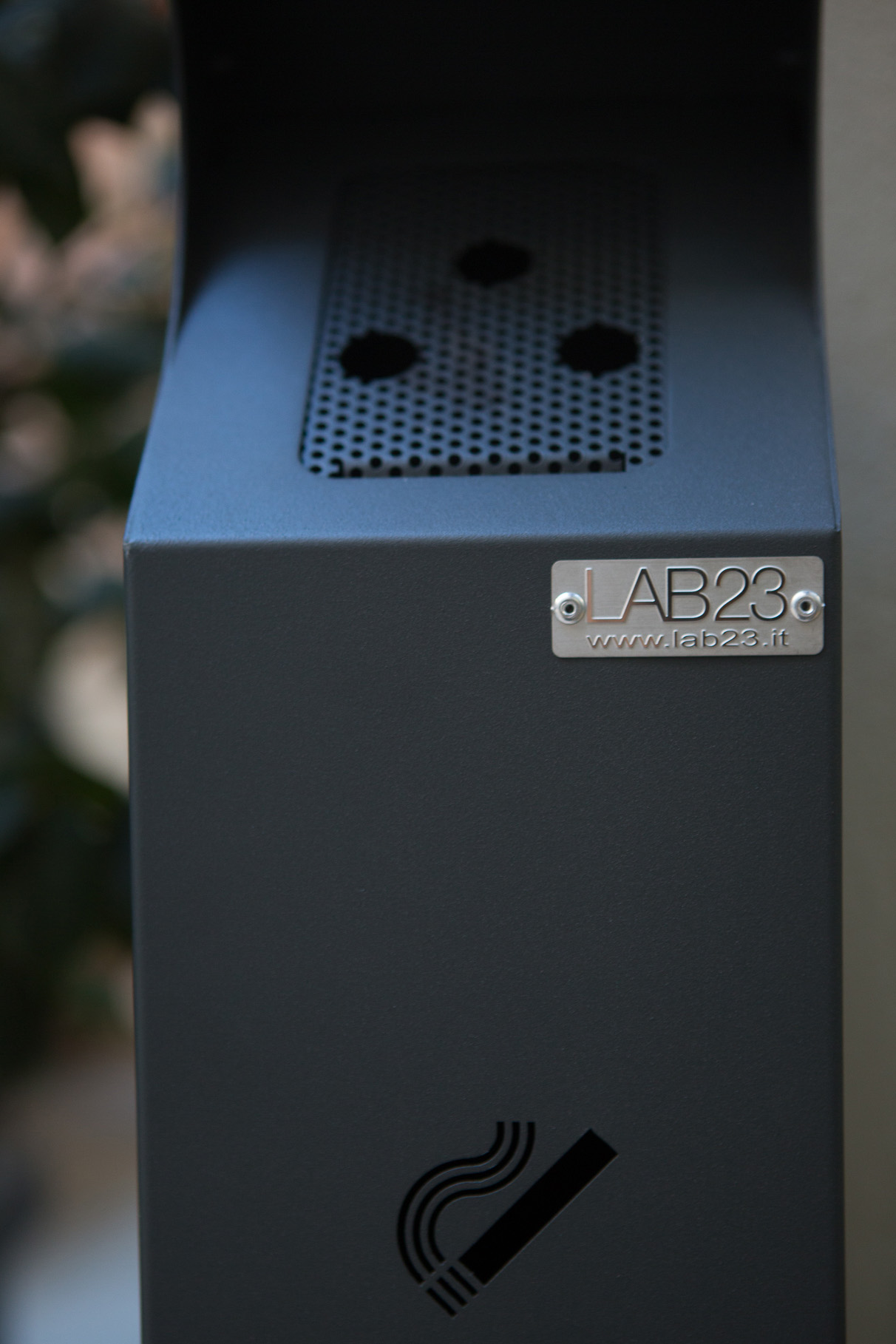

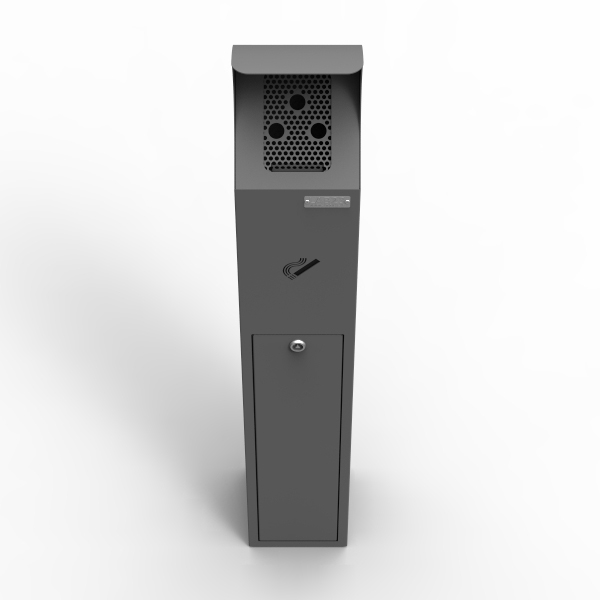

The ashtray ONDA MINI is made in steel of 15/10 thickness. The upper part is made of a calendered sheet, welded to the structure through continuous welding, later polished. With a 50° inclination, a pierced net of dimensions 80×120 mm, with holes of 5 mm diam., is welded to the front part. It also comes with 3 laser-cut holes of 19 mm, under which there is a slot of dimensions 60×10 mm to keep the ashes. On the lower part there is a door of dimensions 120xh 500 mm, whose hinges are obtained by the sheet of the load-bearing structure, through the application on pressure of 2 thread inserts M4. The screws serve as hinges. Inside the ashtray ONDA MINI, a box in galvanized steel sheet 8/10 thickness, provided with 2 oval holes helping its removal, is placed. On the bottom of the ashtray there are 4 holes of 8 mm diam. for the fixing to the ground through specific bolts (not provided).

This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.

The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.



Max dimensions:

Height: 955 mm
Length: 150 mm
Depth: 150 mm
Inner container: 110x110x h 450 mm
Weight: 9 kg
Capacity: 4 lt

Material: steel
