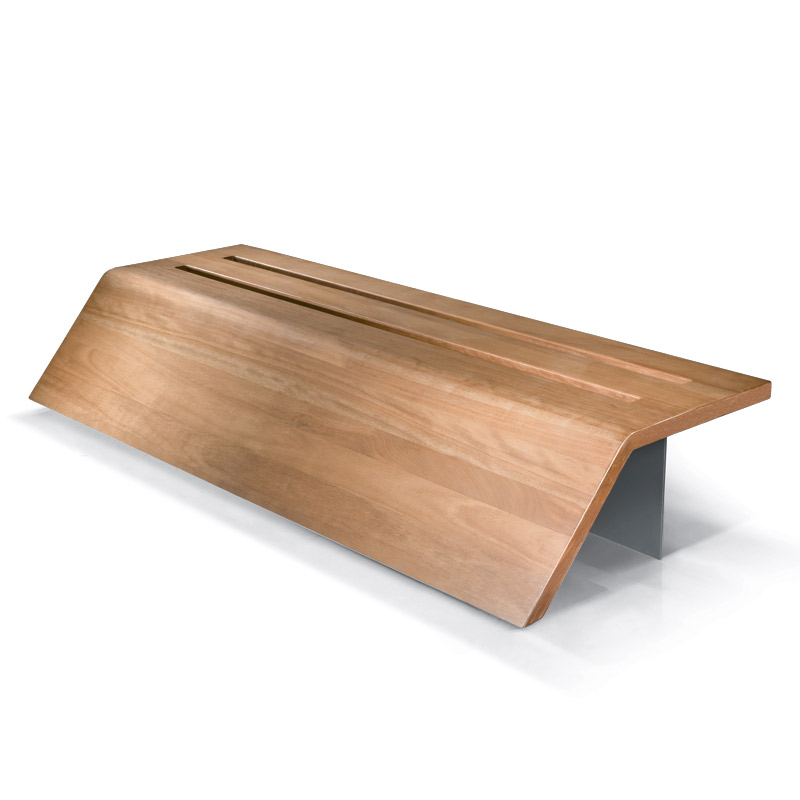

BENCHES: FLY

Categories: , Tags: , ,

Description

Designer: Hangar Design Group



The strong structure of the bench FLY is made in steel (60/10 thickness). It’s the result of two load-bearing elements welded together through a continuous welding, supported by 8 futher elements (60/10 thickness). The upper part of the bench has a peculiar shape combining more exotic wood slats (40 mm thick) in a way that they look as one piece. The seat is fixed to the load-bearing structure through M10 countersunk screws. To make the wooden seat even stronger, two solid steel plates (80/10 thick) are fixed to the underlying part. The base of the metal structure has 4 holes (10 mm diam.) to be fixed to the ground through specific bolts (not provided).

For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations  EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.

The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.



Max dimensions:

Height of the seat: 450 mm
Length: 2000 mm
Width of the seat: 450 mm
Total width: 800 mm

Weight of steel: 70 kg

Materials: steel, wood
