BIKE RACKS: HOOK

Categories: , Tags: ,

Description

Designer: Urban Design

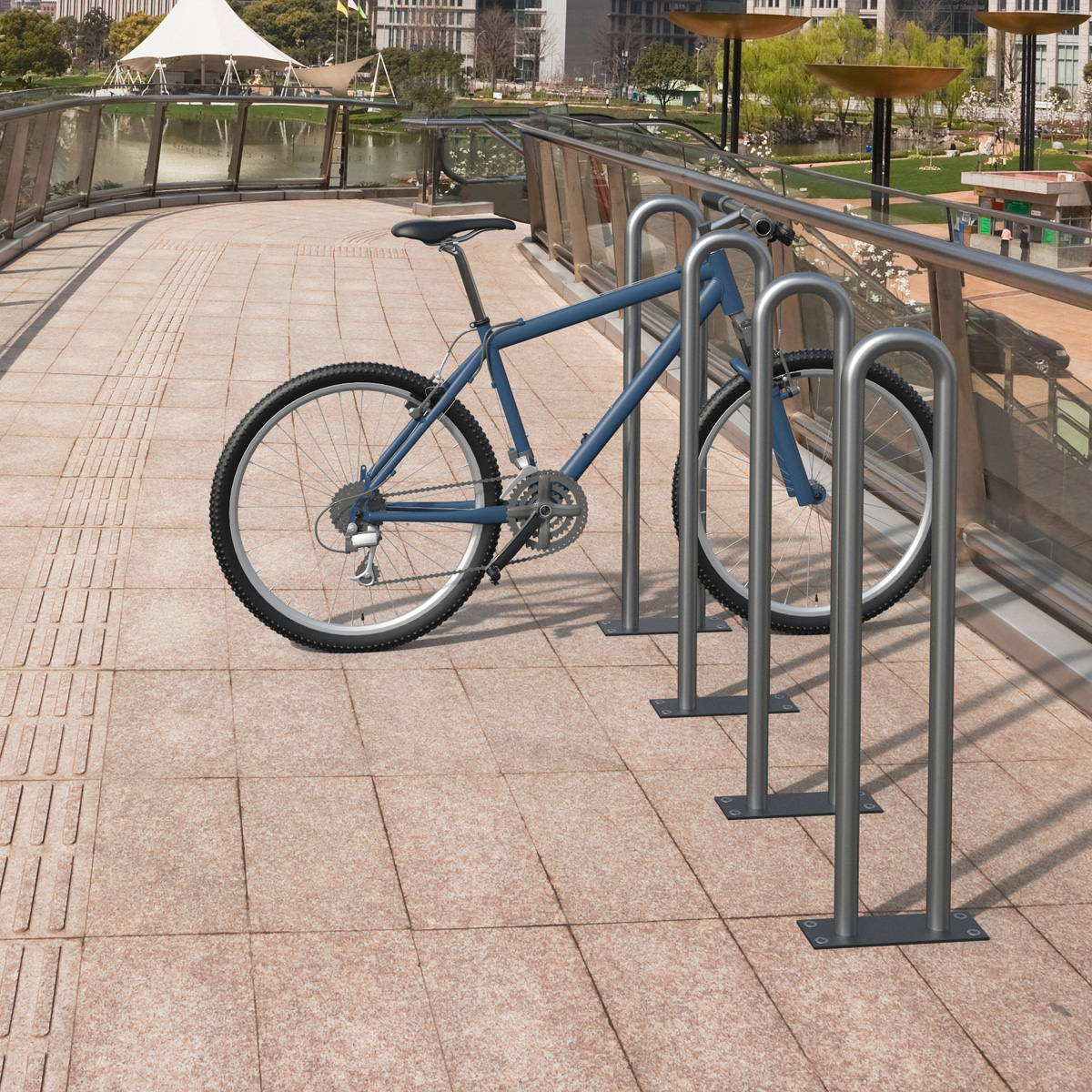

The bike rack HOOK is made in tubular steel of 40 mm diam and 2 mm thickness. On the base of the bike rack there’s a plate in steel sheet 60/10 thickness, provided with 4 holes 10 mm diam. for the fixing to the ground through specific bolts (not provided). Otherwise there can be an underground extension of 250 mm, for the fixing with the appropriate cementation (in this case there is no base plate).

For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations  EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.

This product is also available in stainless steel AISI 316, on demand.



Max dimensions:

Height: 1006 mm
Length: 200 mm
Diameter tube: 40 mm

Type of fixing:
Plate: 300×120 mm
Underfloor: 250 mm
Weight: 6 kg

Optional: extension for cementation
