TREE GRILLES: LAB.SP.004

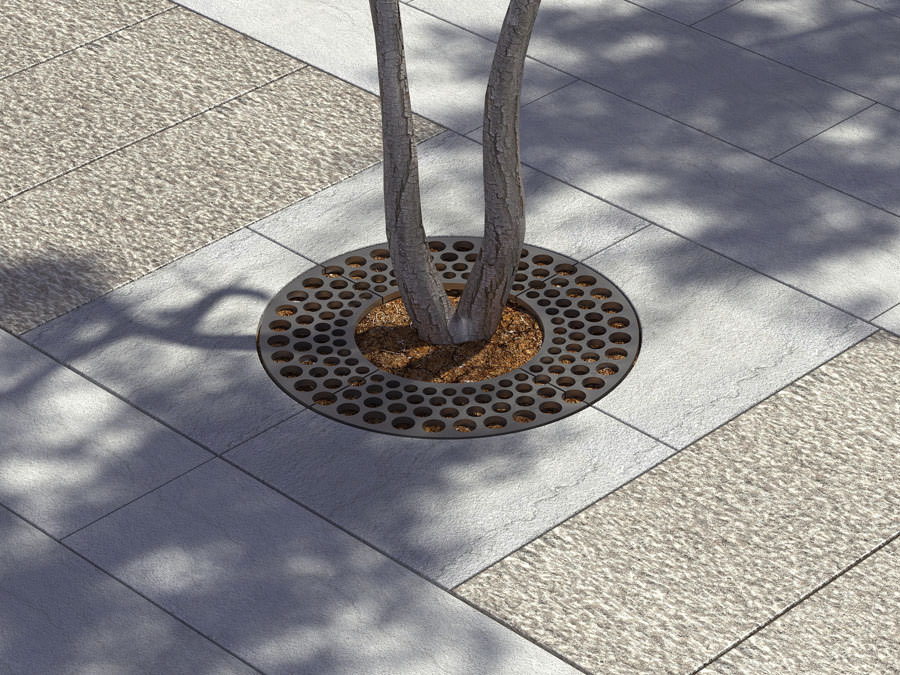

The tree grilles LAB SP are made in steel. Different patterns and dimensions are available with the laser-cut. The smaller tree grilles, LAB SP. 735 mm, are made of 4 elements: two shaping the grille and two shaping the perimetral frame. The grilles LAB SP. 990 mm are made of 6 elements: the upper grille is divided into 4 parts and the frame into 2 parts. The bigger grilles LAB SP are made of 8 elements: both the upper grille and the frame are devided into 4 parts. The upper part of the grilles is the result of laser-cut steel sheets (50/10 thickness), whereas the frame is made in steel sheet, 30/10 thickness. If present, the frame is fixed to the ground through specific bolts (not provided) to be inserted on elements 12×18 mm. The tree grilles are fixed to the ground (or to the frame if present) through specific countersunk holes M6.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
735×735 mm, opening 320 mm
990 x 990 mm, opening 500 mm
1190 x 1190 mm, opening 600/800 mm
1440 x 1440 mm, opening 800 mm
1990 x 1990 mm, opening 800 mm
