Description

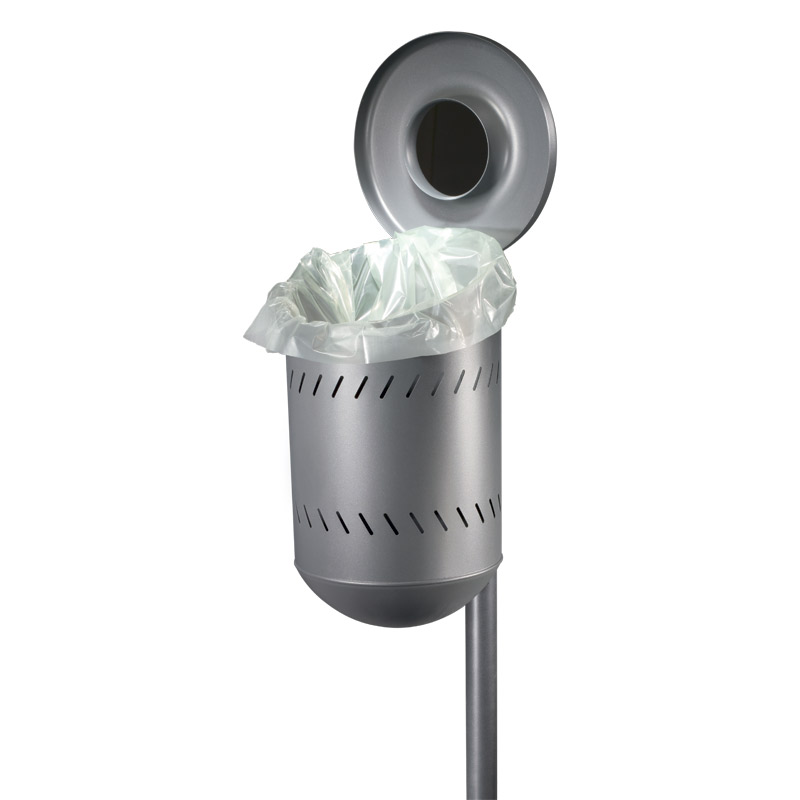

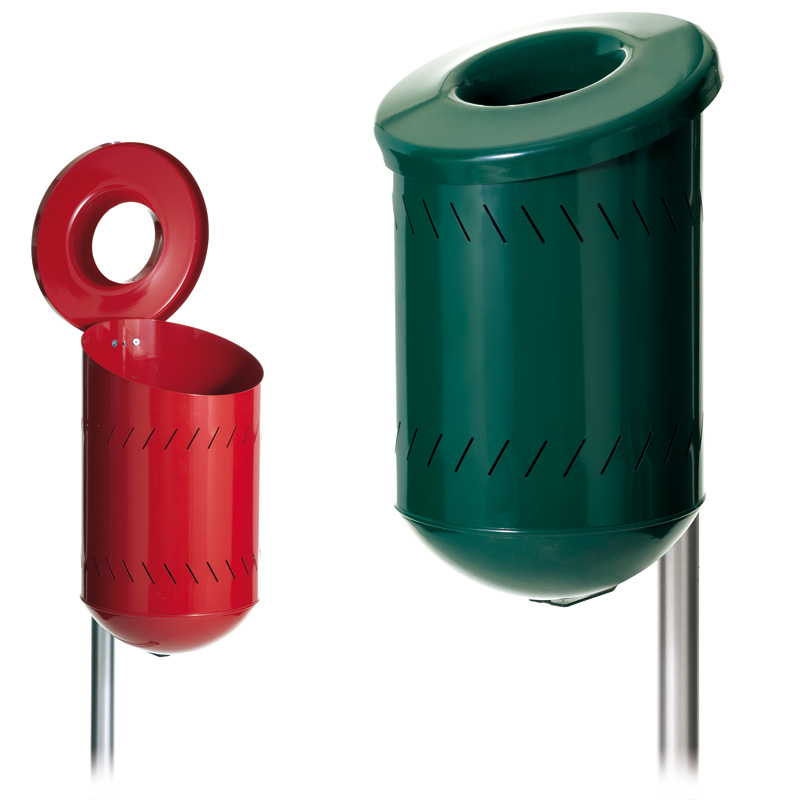

The TOWN is made in galvanized steel of 8/10 thickness. The cover of 335 mm diam. and 40 mm H. has a hole in the middle of 135 mm diam. with an edge curving inwards by 50 mm. A hinge is welded to it and is fixed to the structure of the bin through 3 screws. The bottom of the bin, resulted from the deep-drawing of a galvanized steel sheet of 8/10 thickness with a depth of 110 mm , is fixed to the structure of the bin. In the middle of the bottom there is a hole of 12 mm diam. to drain the water. Two strong brackets of 30/10 thickness are welded to the structure of the bin for the fixing to the post. The TOWN bin can come with a support post or a bracket for the fixing to the wall. The fixing to the post comes with a post in steel of 50 mm diam. , 2 mm thickness and 1200 mm H. with a base plate of 60/10 thickness and 200 mm diam. with 3 holes of 11 mm diam. for the fixing to the ground with specific bolts (not provided). The fixing to the wall comes with a bracket of 30/10 thickness, provided with 2 holes of 8 mm diam. for the use of specific bolts (not provided).

In the version with the post, the rain cover, made in steel sheet of 30/10 thickness, can be added on demand. All the visible elements of the bin are polyester-powder coated.

This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.

The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.



Max dimensions:

Length: 30 cm
Width: 30 cm
Height: 50 cm
Capacity: 28 lt
Weight: 4,5 kg (bin only)

Optional: pole /ashtray Mini Cigar (0,75 lt)

Material: steel
