PLANTERS: AL AIN 2

Designer: Pamio Design

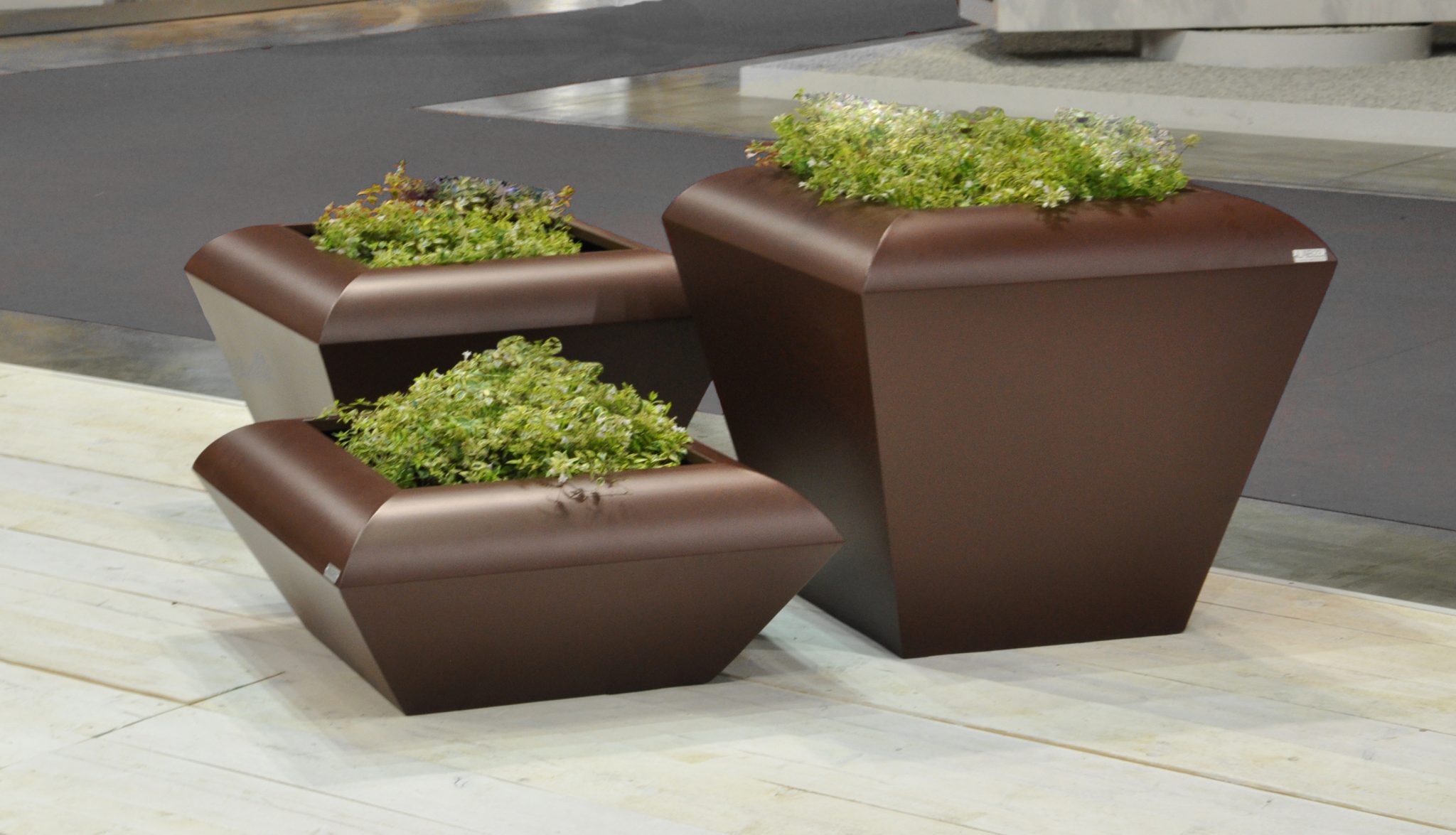

The ALAIN 800 H. 350 planter is made in steel 15/10 thickness. The structure is pyramid-shaped with a square base, and the band of the upper part is calendered with a radius of 160 mm. Inside the planter, on the main part of each side a support profile 15/10 thickness is welded. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes 15 mm diam. for the fixing to the ground through specific bolts (not provided).

For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations  EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.

Max Dimensions:

Height: 350 mm
Length: 800 mm
Width: 800 mm
Weight of steel: 22 kg
Capacity: 145 lt

Height: 520 mm
Length: 1100 mm
Width: 1100 mm

Height: 720 mm
Length: 1500 mm
Width: 1500 mm
Weight of steel: 80 kg
Capacity: 1280 lt

Material: steel
