Designer: Lab23

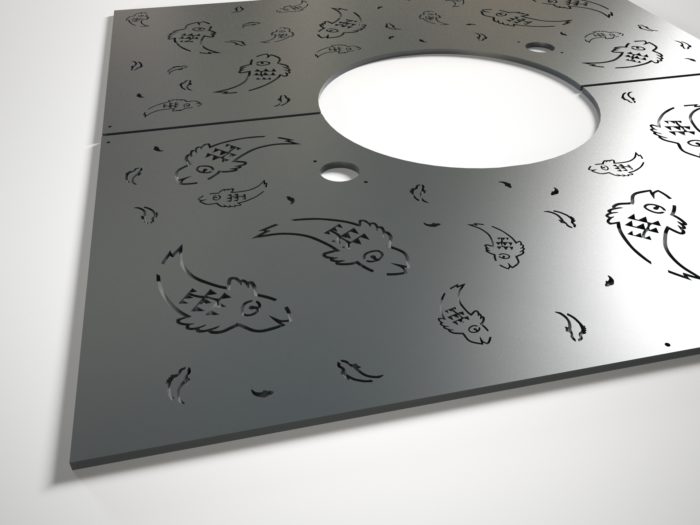

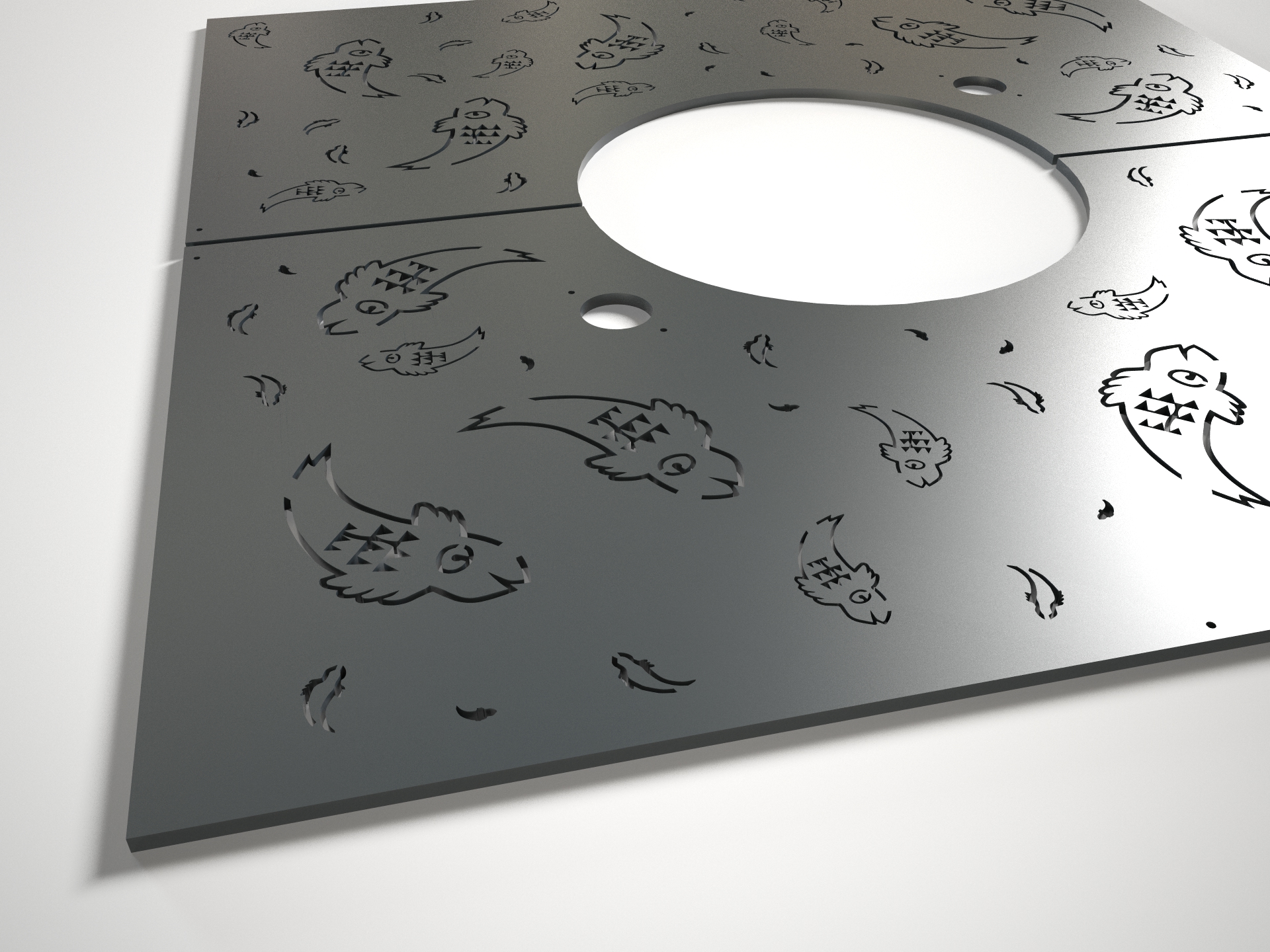

The tree grates PESCI are made in steel, later cold galvanized and polyester powdercoated. The laser cuts available offer a variety of decorations, drawings and dimensions. The smaller treegrates, PESCI 735mm, are made of 4 elements: 2 forthe tree grates and 2 for the perimeter frame. The tree grates PESCI 990mm are made of 6 elements: the upper grate is divided in 4 parts, where as the frame is divided in 2parts. The bigger grates PESCI are made of 8elements: both the upper grate and the frame are divided in 4 parts. The upper part of the grate is the result of the steel sheet’s cut (thickness50/10), where as the frame is made in steel sheet (thickness30/10). If present, the frame is fixed to the ground through specific bolts (notprovided) to be inserted in ovals 12×18 mm. The tree grates are fixed to the ground( or to the frame, if included) through specific countersunk holes M6.

Materials: steel / corten
