ASHTRAYS: ONDA

Categories: , Tags: ,

Description

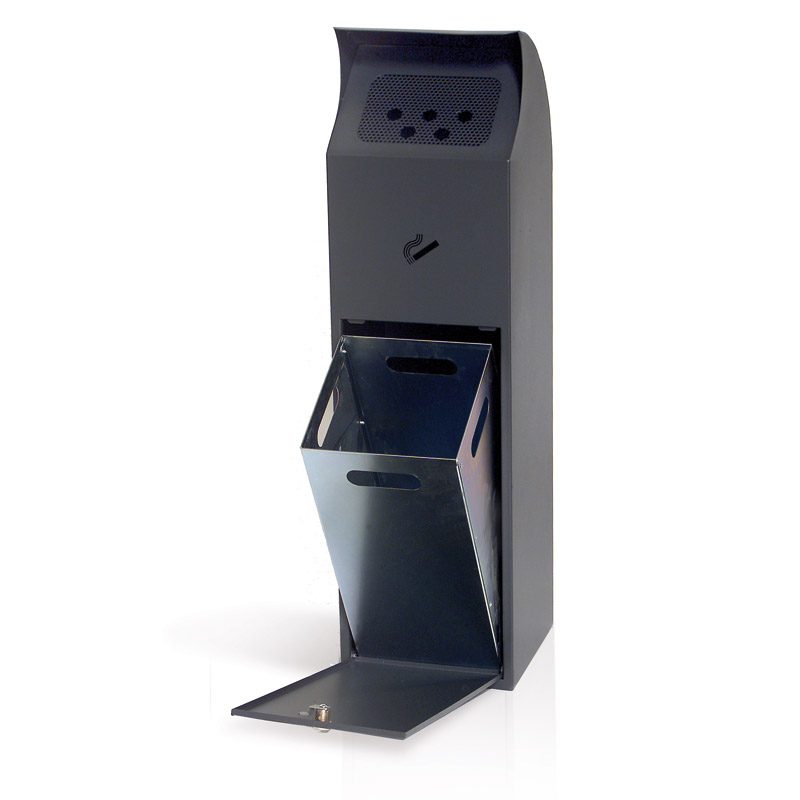

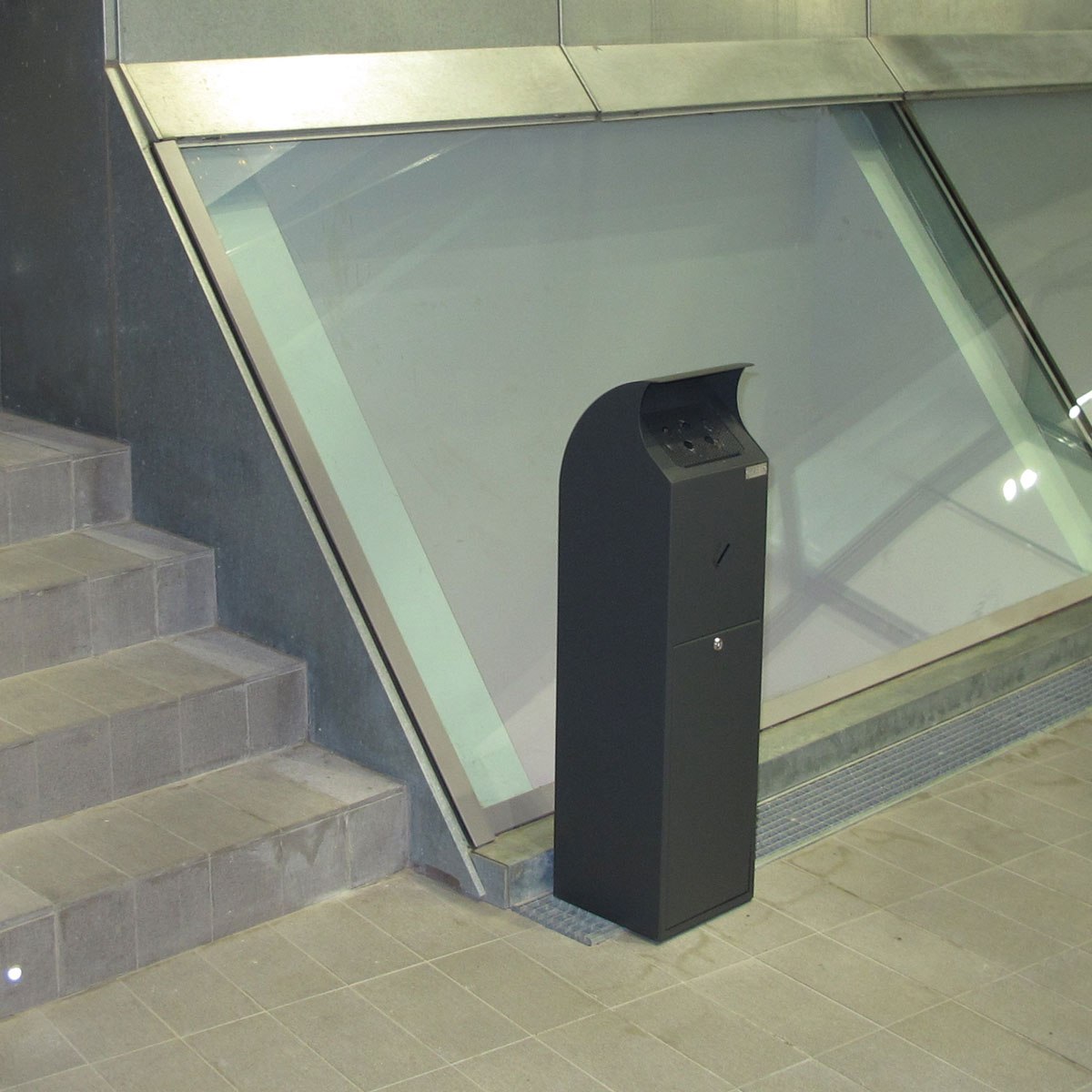

The ashtray ONDA is made in steel of 15/10 thickness. The upper part is made of a calendered sheet, welded to the structure through continuous welding, later polished. With a 50° inclination, a pierced net of dimensions 180×120 mm, with holes of 5 mm diam., is welded to the front part. It also comes with 5 laser-cut holes of 19 mm, under which there is a slot of dimensions 140×10 mm to keep the ashes. On the lower part there is a door of dimensions 220×500 mm, whose hinges are obtained by the sheet of the load-bearing structure, through the application on pressure of 2 thread inserts M4. The screws serve as hinges. Inside the ashtray ONDA, a box in galvanized steel sheet 10/10 thickness, provided with 2 oval holes 100×30 mm helping its removal, is placed. On the bottom of the ashtray there are 4 holes of 8 mm diam. for the fixing to the ground through specific bolts (not provided).

For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations  EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice..

The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.



Max dimensions:

Height: 955 mm
Length: 250 mm
Width: 250 mm

Dimensions inner container:

Height: 450 mm
Length: 210 mm
Width: 210 mm

Weight: 16 kg
Capacity: 16 lt

Material: steel
