CHAIRS: HORIZON

Description

Designer: Stephane Chapelet

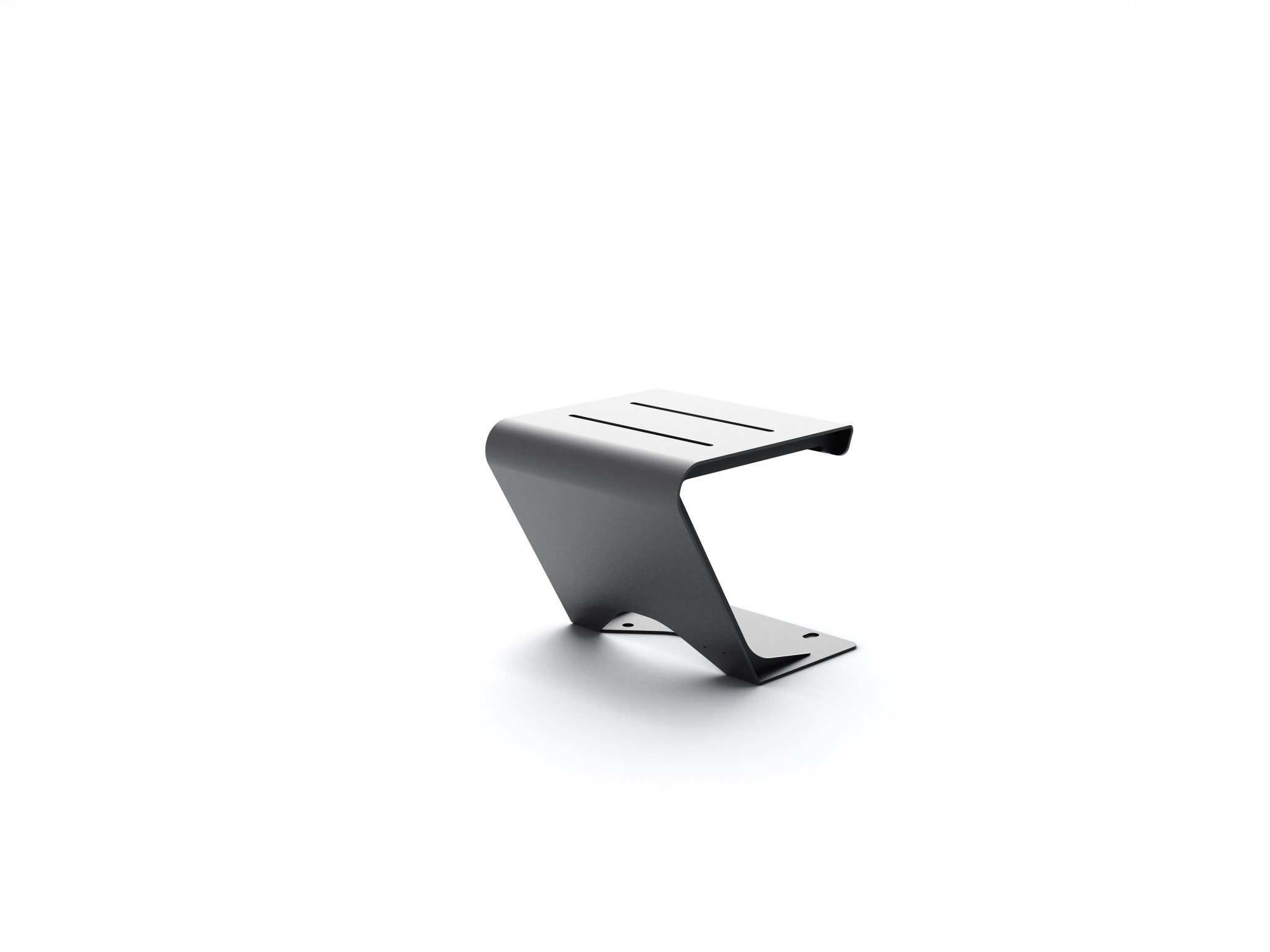

Horizon chair without backrest

The HORIZON chair is made in steel 60/10 thickness. The seat is made of 2 bent steel sheets, welded together through a continuous welding. Under the sheets 3 strong support plates, shaping the outline of the chair 30 mm h., are welded. The base of the metal structure presents 4 holes (14 mm diam.) to be fixed to the ground through specific bolts (not provided).

Weight: 31 kg

Horizon chair with backrest

The chair is made in steel, 60/10 thickness. The seat is made of 2 bent steel sheets, welded together through a continuous welding. Under the sheets 3 strong support plates, shaping the outline of the chair 30 mm h., are welded. The backrest is fixed to the seat through 4 screws M8 and is made in steel, 60/10 thickness.

Between the chairand the backrest there’s a space of 20 mm, result of specific spacers made in brushed tubular stainless steel AISI 316 12×2 mm. The base of the metal structure has 4 holes (14 mm diam.) to be fixed to the ground through specific bolts (not provided).

Weight: 54 kg

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations  EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.

As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.



Max Dimensions:

Height seat: 450 mm
Height backrest: 813,5 mm
Length: 500 mm
Width of the seat: 450 mm
Width (with backrest): 680 mm

Materials: steel
