PLANTERS: FIVE

Categories: , Tags: ,

Description

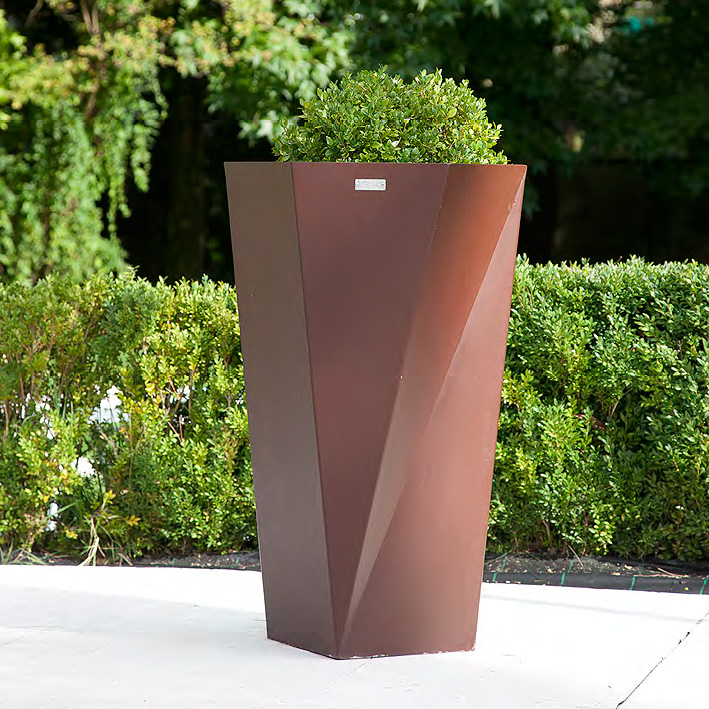

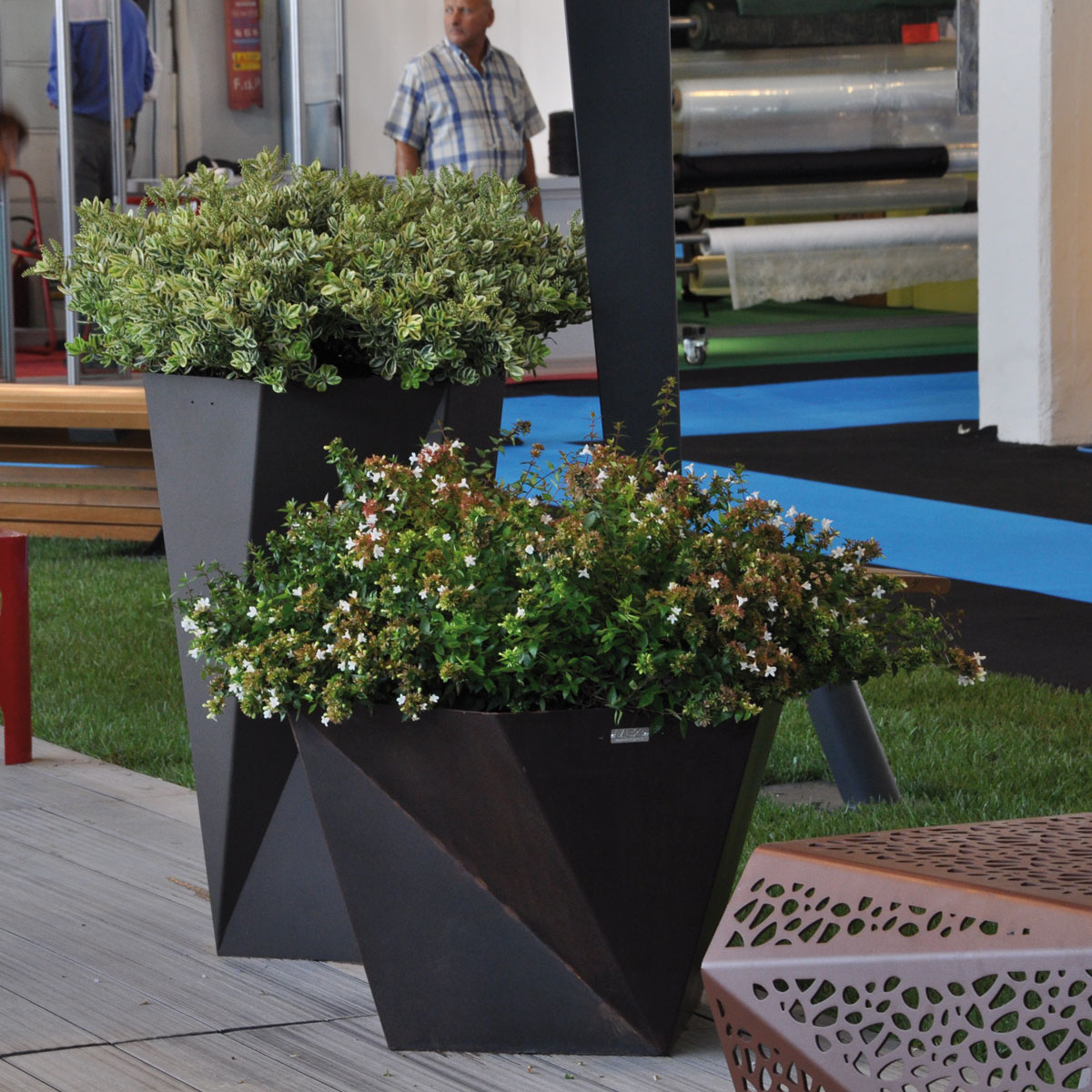

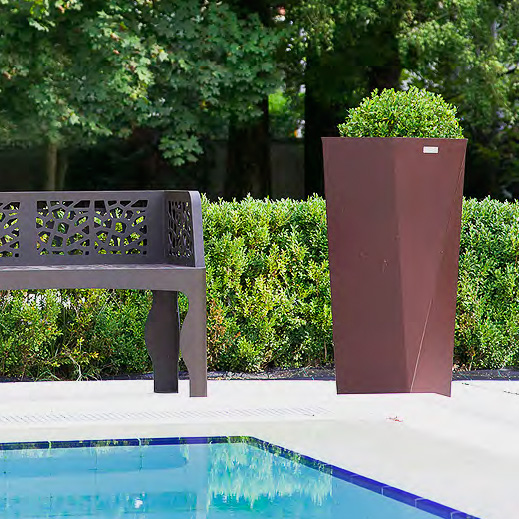

FIVE TALL

The TALL planter FIVE is made in steel. The planter is made of 3 main elements: 2 specular elements with 3 folds each, welded together through continuous welding, later polished so that it’s seamless; and the bottom, welded through continuous welding as well. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes M10 for the fixing to the ground through specific bolts.

FIVE SHORT

The SHORT planter FIVE is made in steel 30/10 thickness. The planter is made of 3 main elements: 2 specular elements with 3 folds each, welded together through continuous welding, later polished so that it’s seamless; and the bottom, welded through continuous welding as well. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes M10 for the fixing to the ground through specific bolts.

For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.

As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.



Max Dimensions:

TALL

Height: 900 mm
Length: 578 mm
Width: 503 mm
Base: 290 x 290 mm
Capacity: 120 lt
Weight: 33 kg

SHORT

Height: 500 mm
Length: 780 mm
Width: 670 mm
Base: 387,50 x 387,50 mm
Capacity: 120 lt
Weight: 27 kg

Material: steel
